Start Your Custom Carbon Fiber Project

Send us your drawing, dimensions or reference images. We support prototypes, small-batch production and custom carbon fiber parts.

REQUEST A QUOTE CONTACT US ON WHATSAPP

Browse our latest products


Need a custom size, structure or carbon fiber component? Send us your drawing for evaluation.

Import duties and taxes are not included. Additional charges may apply depending on the destination country.

MOX MARK4 V3 Pro Series

MOX MARK4 V3 Pro Series

MOX MARK4 V3 Pro Series – Engineered for the Long Haul The...

MOX MARK4 V3 Pro Series

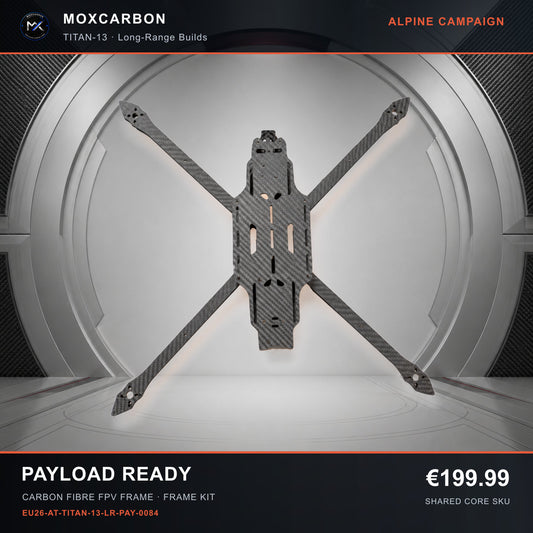

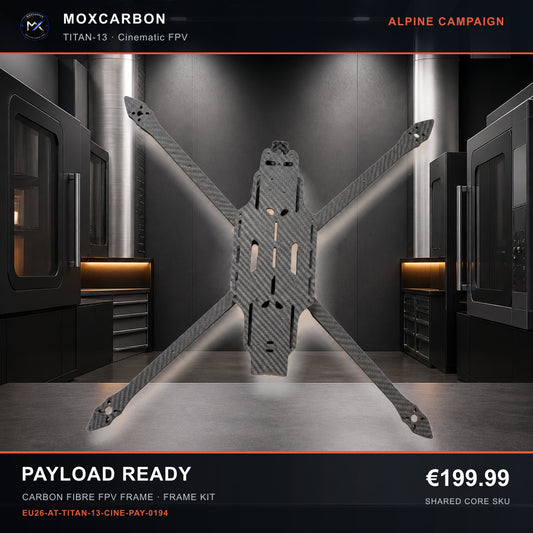

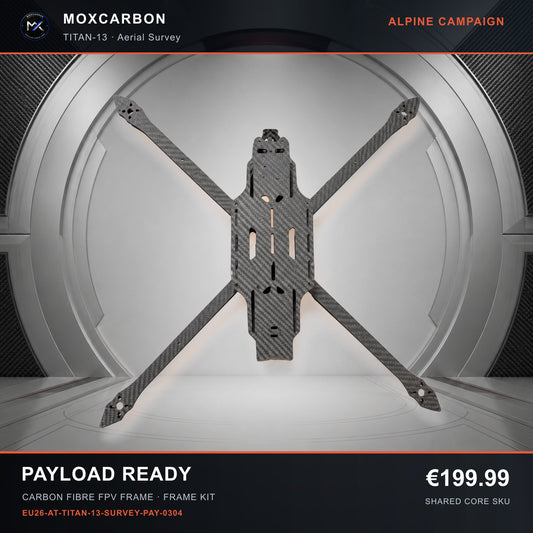

MARK4 V3 Titan GOW Series

MARK4 V3 Titan GOW Series

MOX MARK4 Titan GOW Series – Ultimate Strength. Extreme Endurance. The Titan...

MARK4 V3 Titan GOW Series

Four product lines. Same production chain.


Every MOX CARBON drone frame is woven, cured, and CNC-machined under one roof — from a nimble 7" freestyle build to an 18" heavy-lift cinelifter platform. Precision-cut carbon fiber keeps weight low and stiffness high, so your build survives the crash that would've ended a lesser frame. This is our highest-volume product line, trusted by pilots and integrators who can't afford a frame failure mid-flight.

four stages. One roof.

  • Raw Materials

    We start with premium 3K carbon fiber – carefully selected for strength, weight, and consistency. Every roll meets our strict quality standards before it reaches the cutting table.

  • Precision CNC Machining

    Our advanced CNC equipment cuts each frame with micron-level accuracy. Every hole, edge, and contour is precisely machined to ensure perfect fit and vibration-free performance

  • Rigorous Quality Control

    Each frame undergoes thorough inspection – from dimensional accuracy to surface finish. We test every critical point to guarantee durability and reliability before it leaves our facility

  • Secure Packaging & Global Shipping

    Your frame is carefully packed with protective materials and shipped worldwide. We ensure your order arrives safe and ready to build.

Factory Direct Supply

Direct from Manufacturer, Guaranteed Quality & Favorable Pricing

Factory Direct Supply
Production Floor
Production Floor
Professional Team
Professional Team
Warehousing & Logistics
Warehousing & Logistics
Packing & Shipping
Packing & Shipping

Collapsible content

MOX MARK4 V2Product specifications

  • Material 3K Twill Carbon Fiber (T300)
  • Frame Design Frame Design
  • Available Sizes 7" / 8" / 10" / 13"
  • FrameWeight FrameWeight
  • Wheelbase 295mm / 368mm / 424mm / 536mm
  • Arm Thickness 6mm – 8mm (varies by size)
  • Package Includes Screws, aluminum standoffs, battery pads, arm soft mounts, battery straps

Tolerance ±0.05mm

XL10 V7 SPECIFICATIONS

  • Label Value
  • Material 3K Twill Carbon Fiber (T300)
  • Frame Design Wide X-Type
  • Size10"
  • Frame Weight 300g
  • Wheelbase 420mm
  • Top Plate Thickness 3.0mm
  • Arm Thickness 7mm
  • Package Includes Screws, aluminum standoffs, battery pads, arm soft mounts, battery straps, 3D printed parts
  • Tolerance ±0.05mm


MOX MARK4 V3 Pro SPECIFICATIONS

  • Label Value
  • Material 3K Twill Carbon Fiber (T300)
  • Frame Design H-Type,
  • ReinforcedAvailable Sizes 13" / 15"
  • Frame Weight 550g / 555g
  • Wheelbase 565mm / 692mm
  • Arm Thickness 8mm
  • MaterialPackage Includes Screws, aluminum standoffs, battery pads, arm soft mounts, battery straps, 3D printed parts
  • Tolerance ±0.05mm

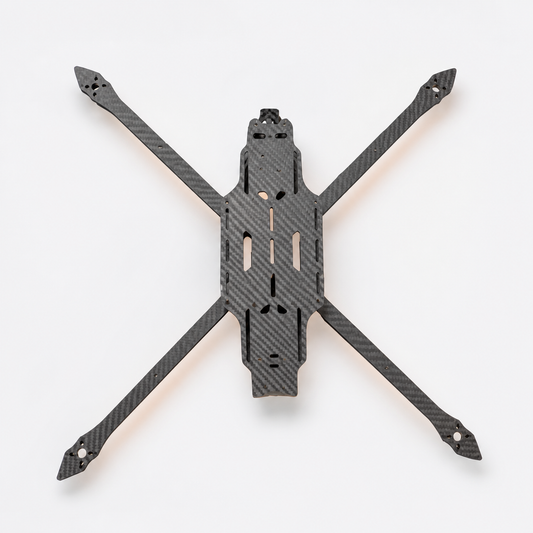

MARK4 Titan SPECIFICATIONS

  • Label Value
  • Material 3K Twill Carbon Fiber (T300)
  • Frame DesignWide X-Type
  • Available Sizes 13" / 15" / 17" / 18"
  • Frame Weight 785g / 825g / 1060g / 1090g
  • Wheelbase 594mm / 645mm / 775mm / 815mm
  • Base/Mid Plate Thickness 4.0mm
  • Arm Thickness 10mm
  • Package Includes Screws, aluminum standoffs, battery pads, battery straps, 3D printed parts
  • Tolerance ±0.05mm
